Scatter chart

Points placing each item on two measures, with optional labels.

ChartScatter places each point by two measures — deal size against cycle length, response size against latency. Points are drawn at 6 px unless pointSize says otherwise.

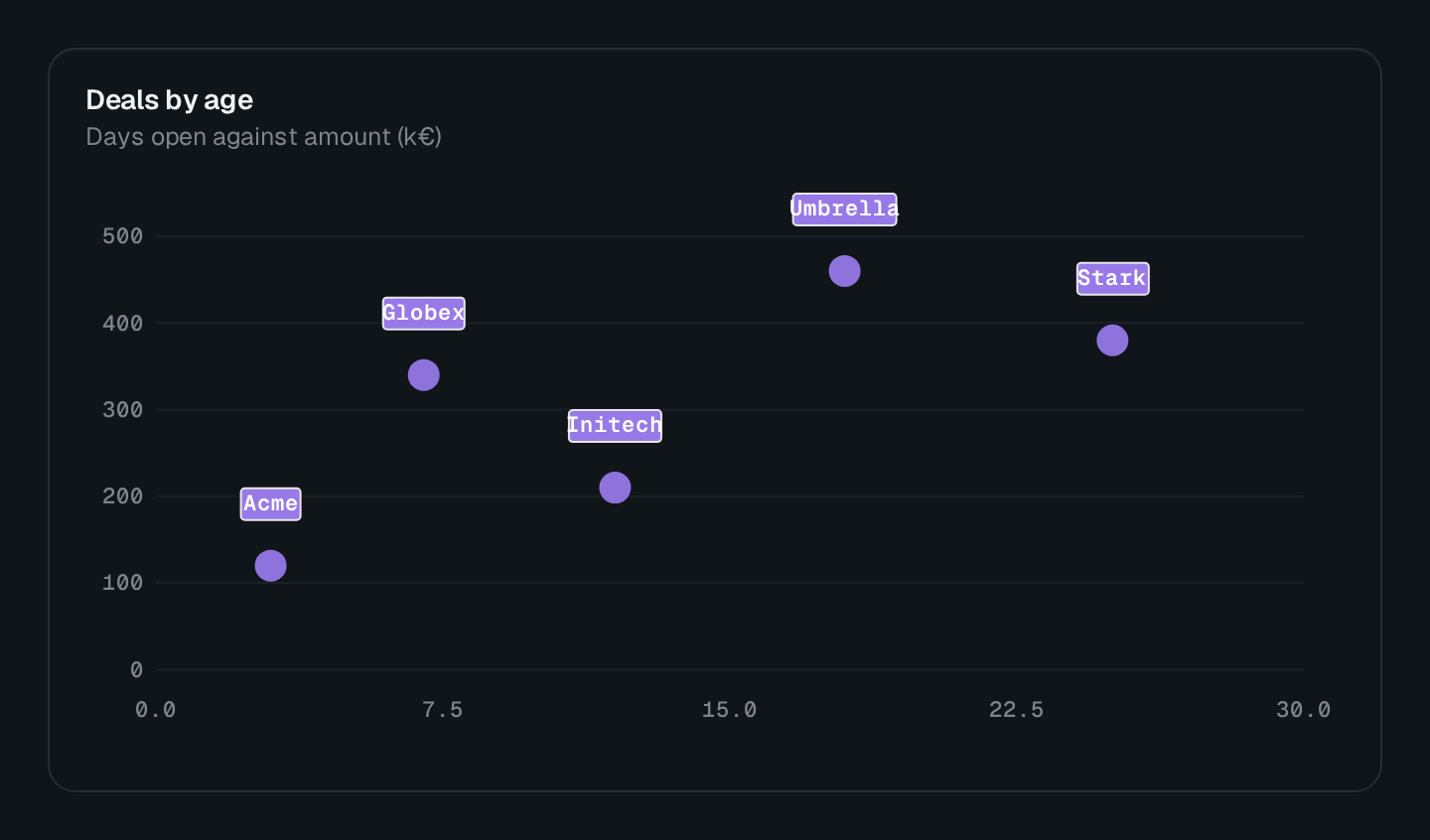

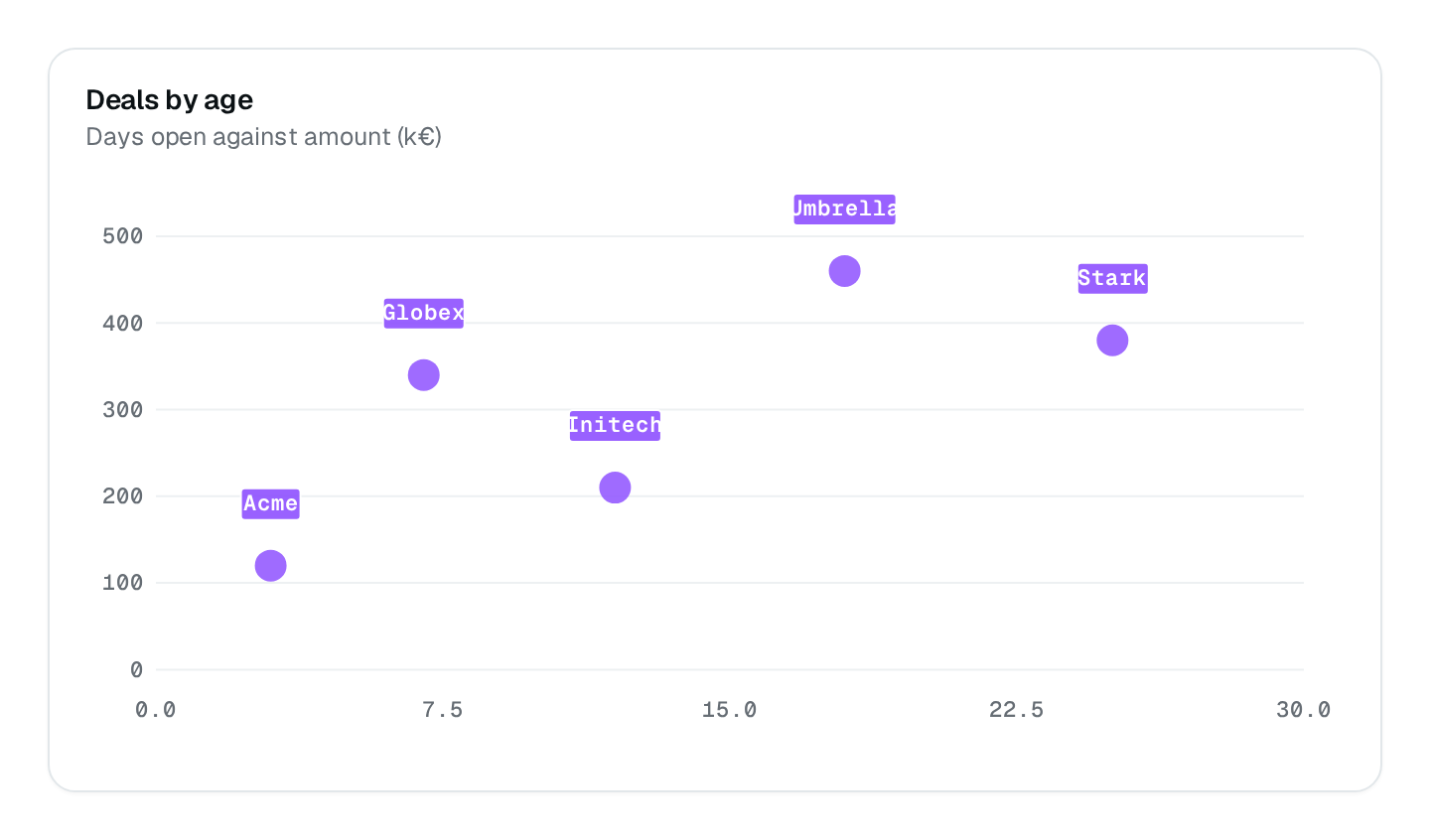

Screenshot of the Scatter Chart block — Scatter Chart`ChartScatter`

Usage

src/pages/dashboard.ts

import { ChartScatter } from "@antelopejs/interface-dms/base/chart";

static deals = ChartScatter({
  title: "$crm.deals.size_vs_cycle",
  fetchUrl: "/api/crm/deals/scatter",
  xaxisType: "numeric",
  showLabels: true,
});

The route answers { series } in the shape listed under Data shapes. Wrap the chart in a ChartCard to add a headline value and a comparison.

Options

Options of the Scatter Chart block
Option	Type	Default
`title`Content	`string`	–
`description`Content	`string`	–
`color`Appearance	`string \| string[]`	–
`height`Appearance	`string`	–
`width`Appearance	`number`	–
`showTooltip`Appearance	`boolean`	`true`
`showLegend`Appearance	`boolean`	`true`
`legendPosition`Appearance	`"top" \| "bottom"`	–
`showGrid`Appearance	`boolean`	`true`
`yRange.min`*Appearance	`number`	–
`yRange.max`*Appearance	`number`	–
`comparisonStyle`Appearance	`"dashed" \| "solid" \| "dimmed"`	–
`smooth`Appearance	`boolean`	`true`
`curve`Appearance	`"smooth" \| "straight" \| "stepline"`	–
`xaxisType`Appearance	`"category" \| "datetime" \| "numeric"`	–
`pointSize`Appearance	`number`	–
`showLabels`Appearance	`boolean`	–

Recipes

Label the points

With showLabels, a point's label is what its data label shows; a point without one shows its value.
