Column chart

Vertical columns comparing periods or categories, stacked or grouped.

ChartColumn draws vertical columns. Use it to compare periods (orders per month) or a handful of categories, with stacked: true to show their composition.

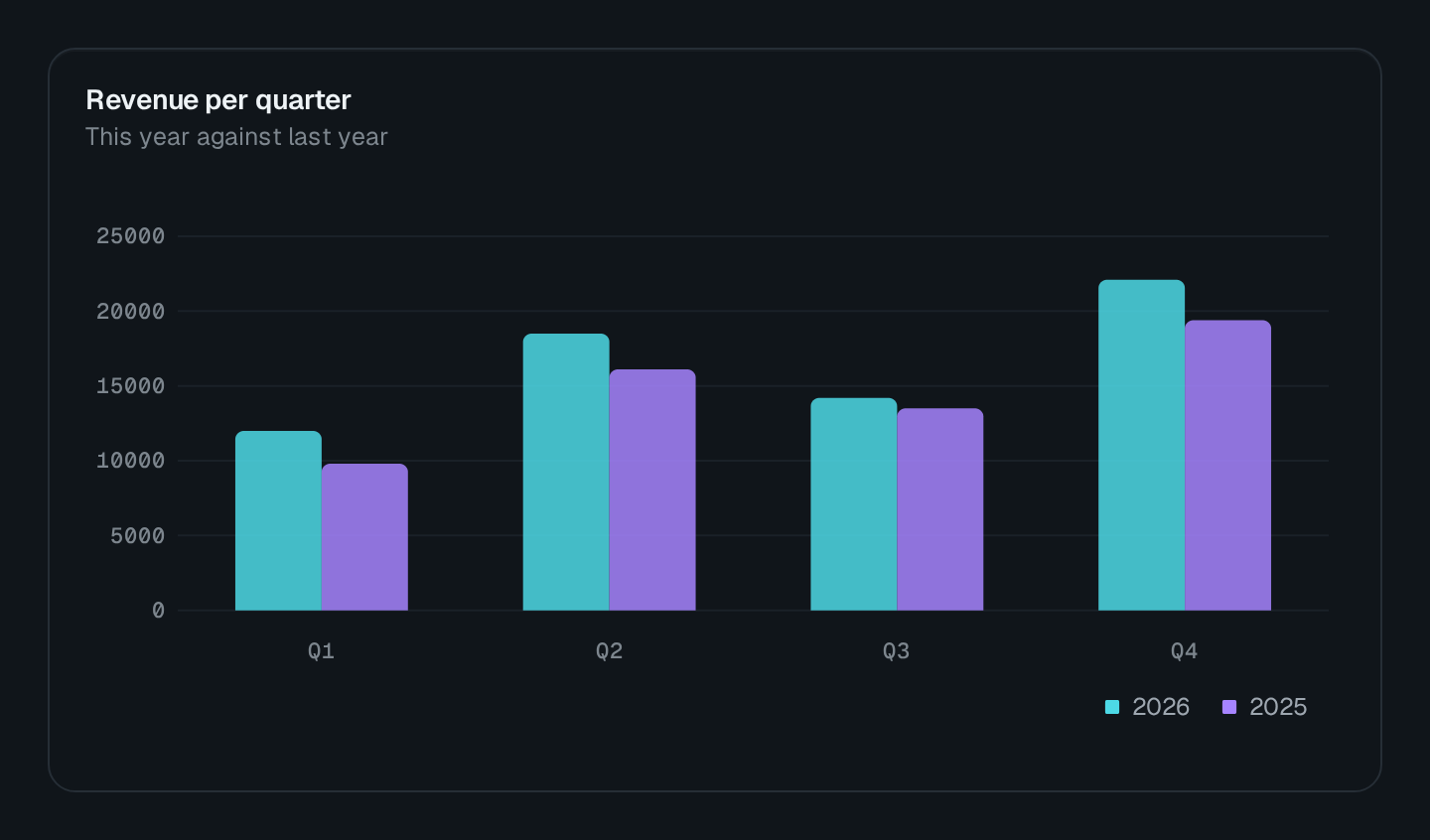

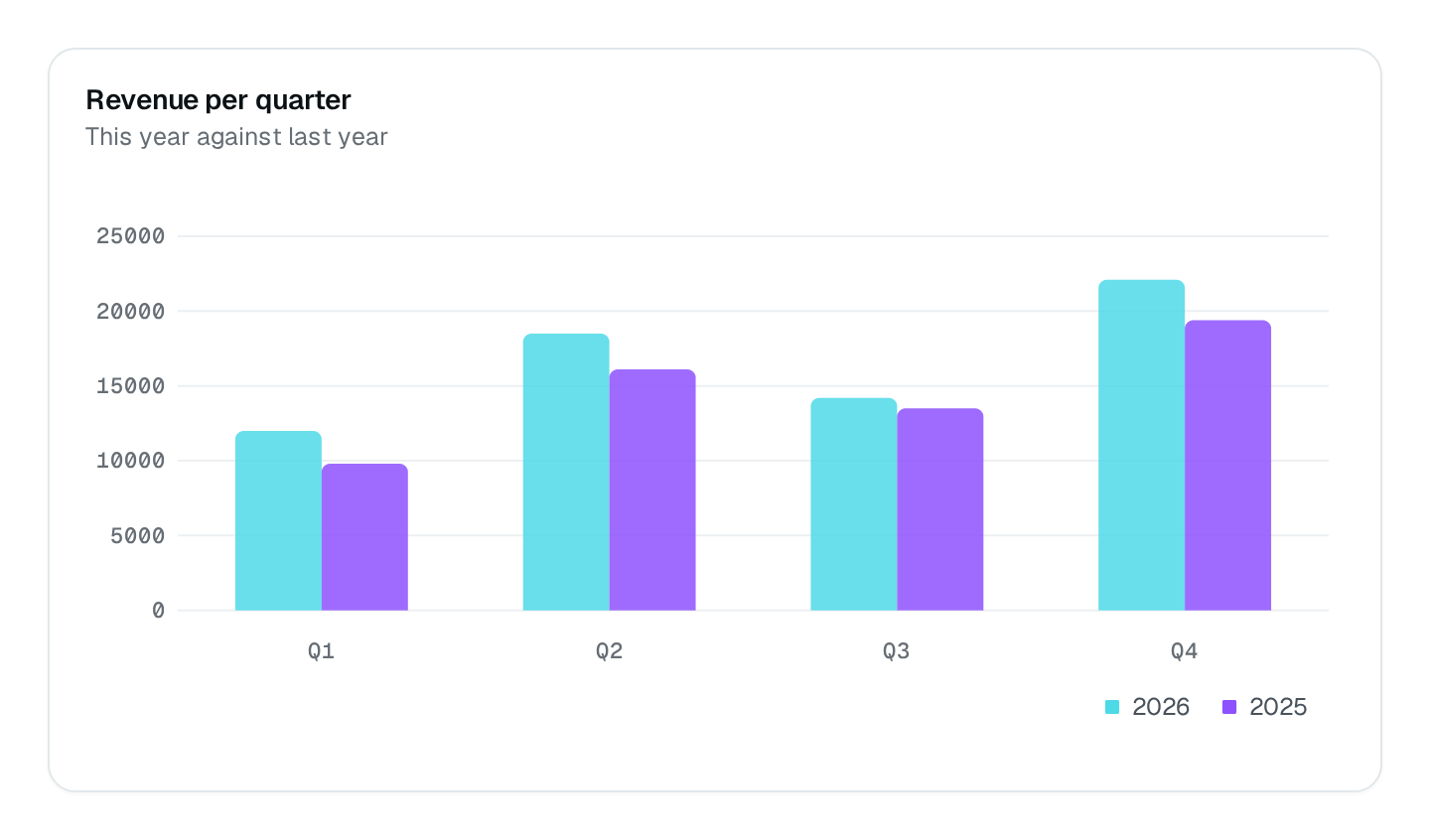

Screenshot of the Column Chart block — Column Chart`ChartColumn`

Usage

src/pages/dashboard.ts

import { ChartColumn } from "@antelopejs/interface-dms/base/chart";

static orders = ChartColumn({
  title: "$shop.orders.per_month",
  fetchUrl: "/api/shop/orders-per-month",
  columnWidth: 60,
});

The route answers { series } in the shape listed under Data shapes. Wrap the chart in a ChartCard to add a headline value and a comparison.

Options

Options of the Column Chart block
Option	Type	Default
`title`Content	`string`	–
`description`Content	`string`	–
`color`Appearance	`string \| string[]`	–
`height`Appearance	`string`	–
`width`Appearance	`number`	–
`showTooltip`Appearance	`boolean`	`true`
`showLegend`Appearance	`boolean`	`true`
`legendPosition`Appearance	`"top" \| "bottom"`	–
`showGrid`Appearance	`boolean`	`true`
`yRange.min`*Appearance	`number`	–
`yRange.max`*Appearance	`number`	–
`comparisonStyle`Appearance	`"dashed" \| "solid" \| "dimmed"`	–
`smooth`Appearance	`boolean`	`true`
`curve`Appearance	`"smooth" \| "straight" \| "stepline"`	–
`xaxisType`Appearance	`"category" \| "datetime" \| "numeric"`	–
`stacked`Appearance	`boolean`	–
`columnWidth`Appearance	`number`	–
`roundedCorners`Appearance	`boolean`	`true`

Recipes

Columns with a target

Add annotations: [{ y: 1200, label: "Target" }] to draw the goal across the columns.
