Period filtering

A dashboard date-range is shared, not passed. A PeriodSelector resolves the chosen preset and comparison into a PeriodState and publishes it under a string id; every widget naming that same string in its periodScope reads the state and refetches when it changes. A client-side registry keyed by id mediates between them — no provide/inject, no prop drilling, producer and consumers anywhere on the page.

This page covers the linking mechanism; the page-level components — PeriodSelector and the chart/card widgets — are in Charts & widgets.

See a shared period change

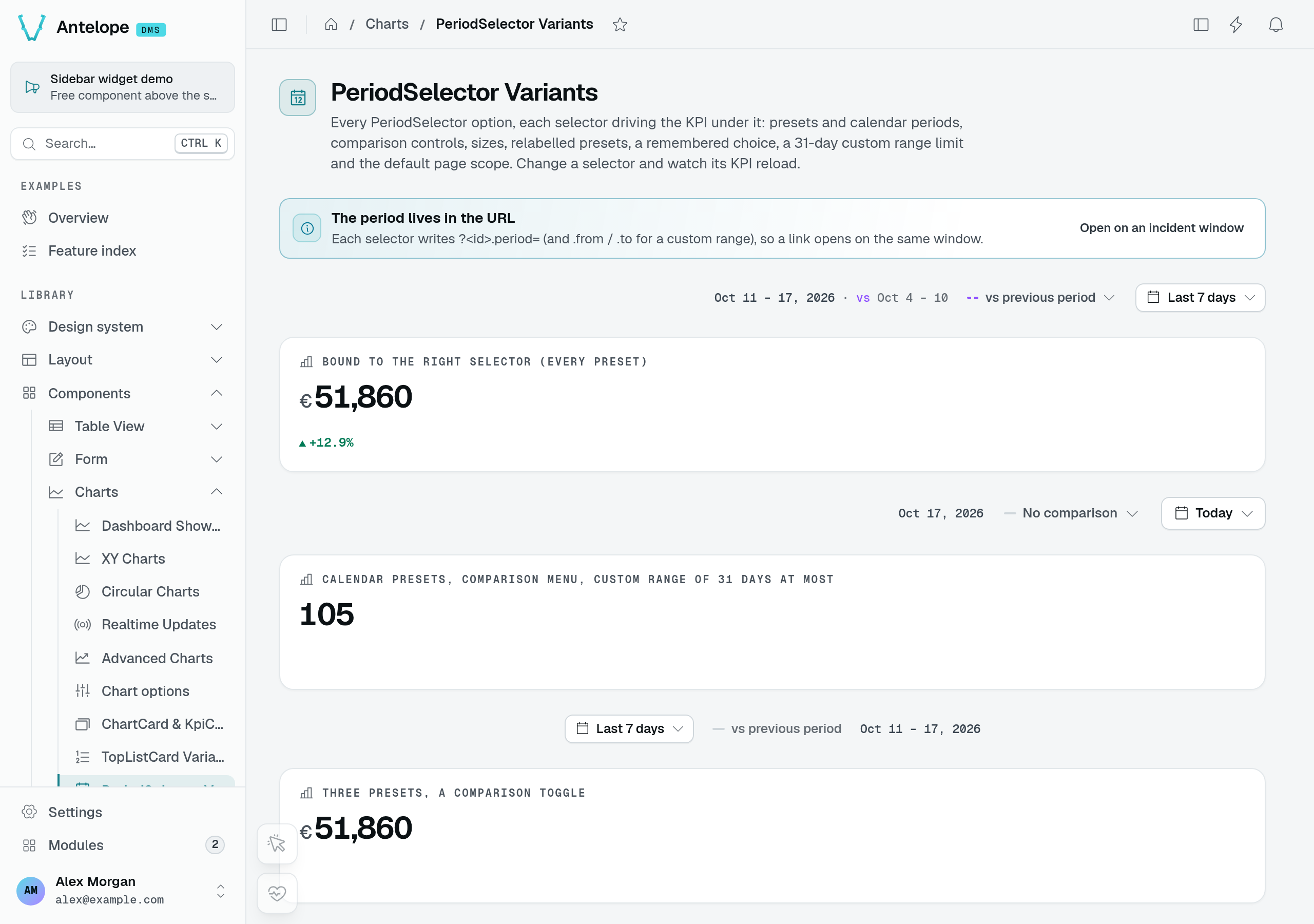

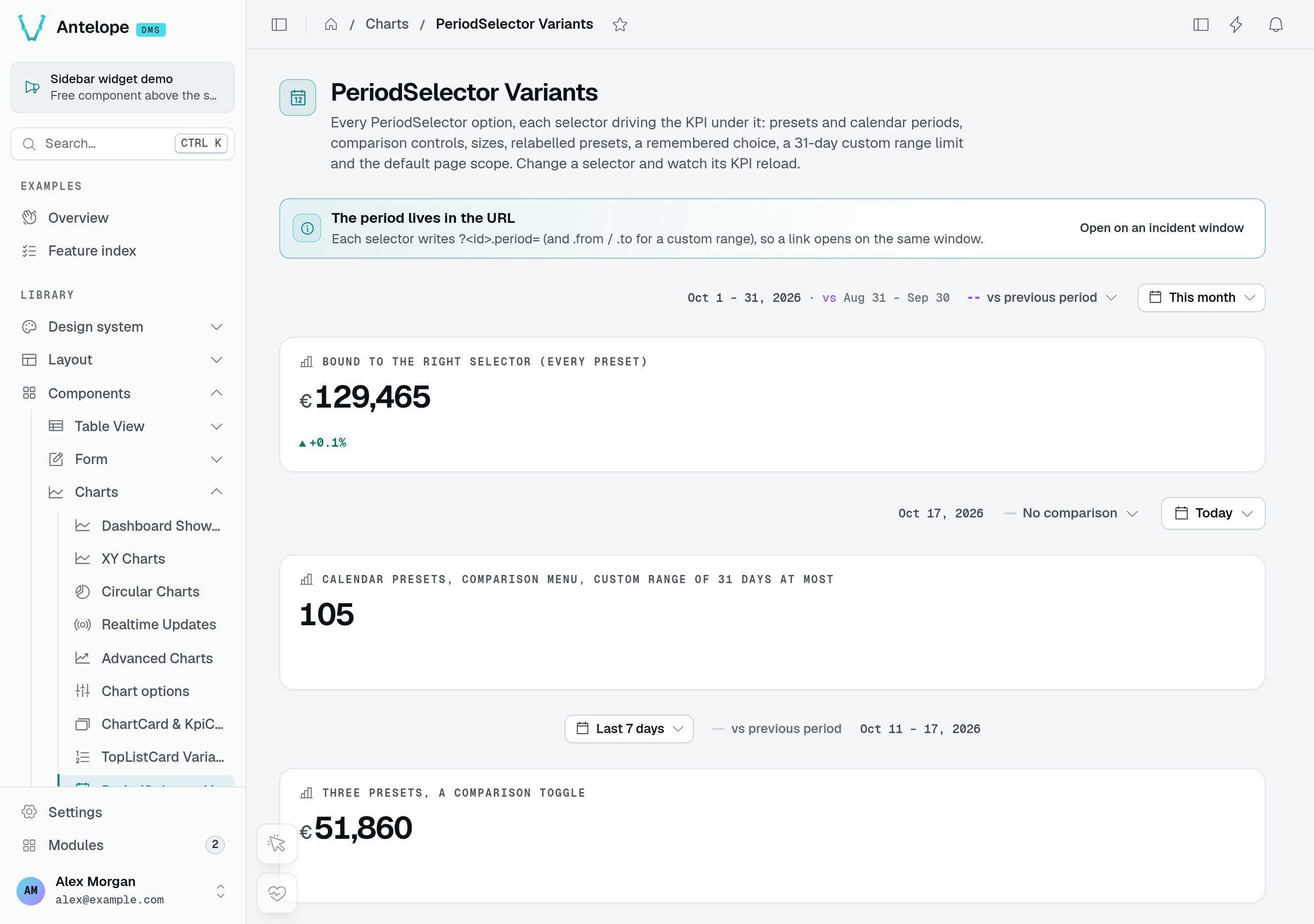

On the playground's PeriodSelector Variants page, the first selector and the revenue KPI below it share period-right. These captures show the same demo data with This month (€129,465) and Last 7 days (€51,860). The comparison changes from +0.1% to +12.9%; the calendar KPI below stays at 105 because it belongs to a different scope. These are playground values, not production revenue.

Open the first Preset control, choose Last 7 days, then Apply. The URL changes to period-right.period=last-7-days; only consumers of that scope refetch.

Live and Pause are separate from period selection

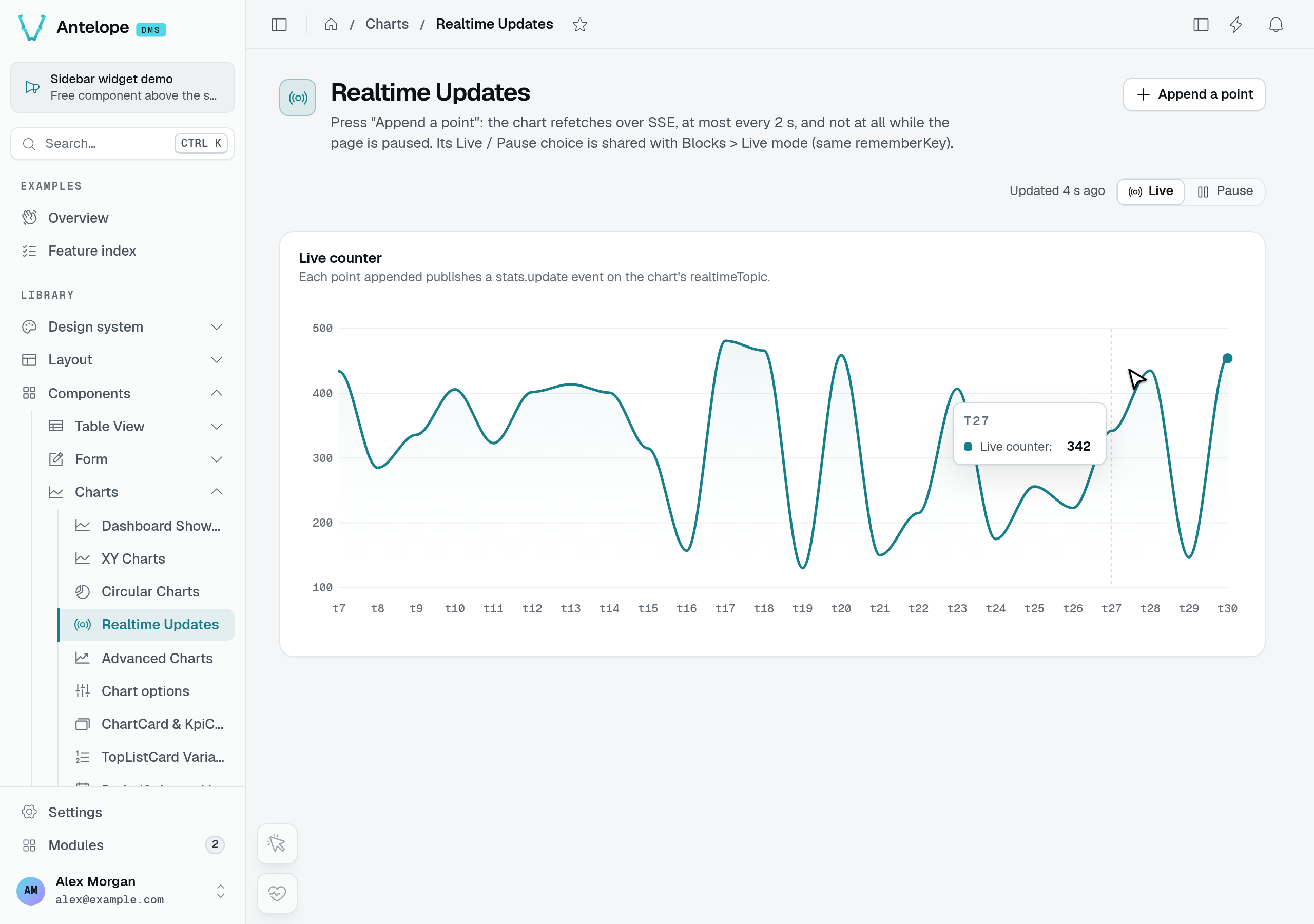

The playground's Realtime Updates page demonstrates incoming updates rather than date filtering. To isolate those updates, open the page in two tabs and click Append a point in the second tab while observing the first. With Live selected, the first tab refetches and advances to t30 in this run.

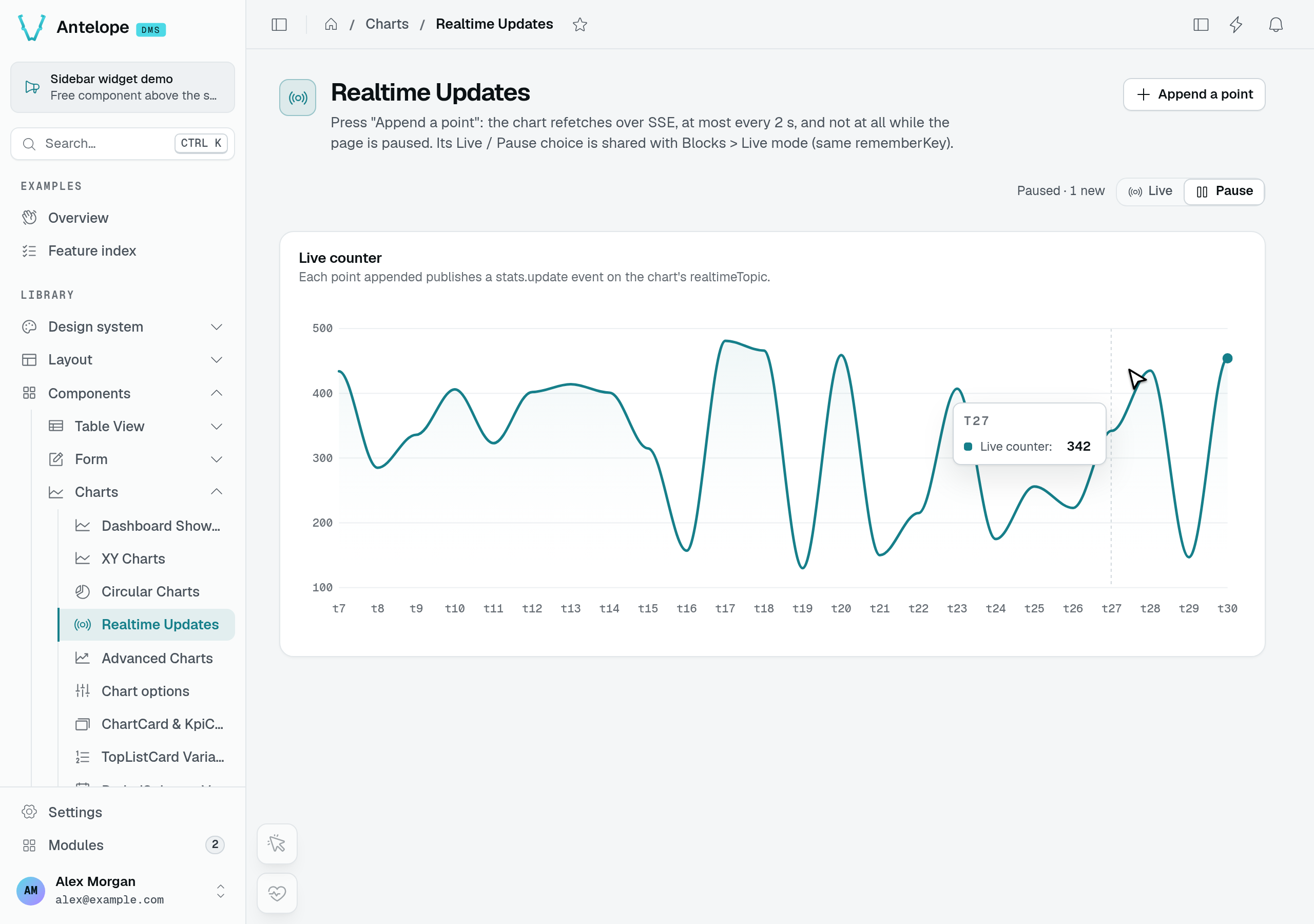

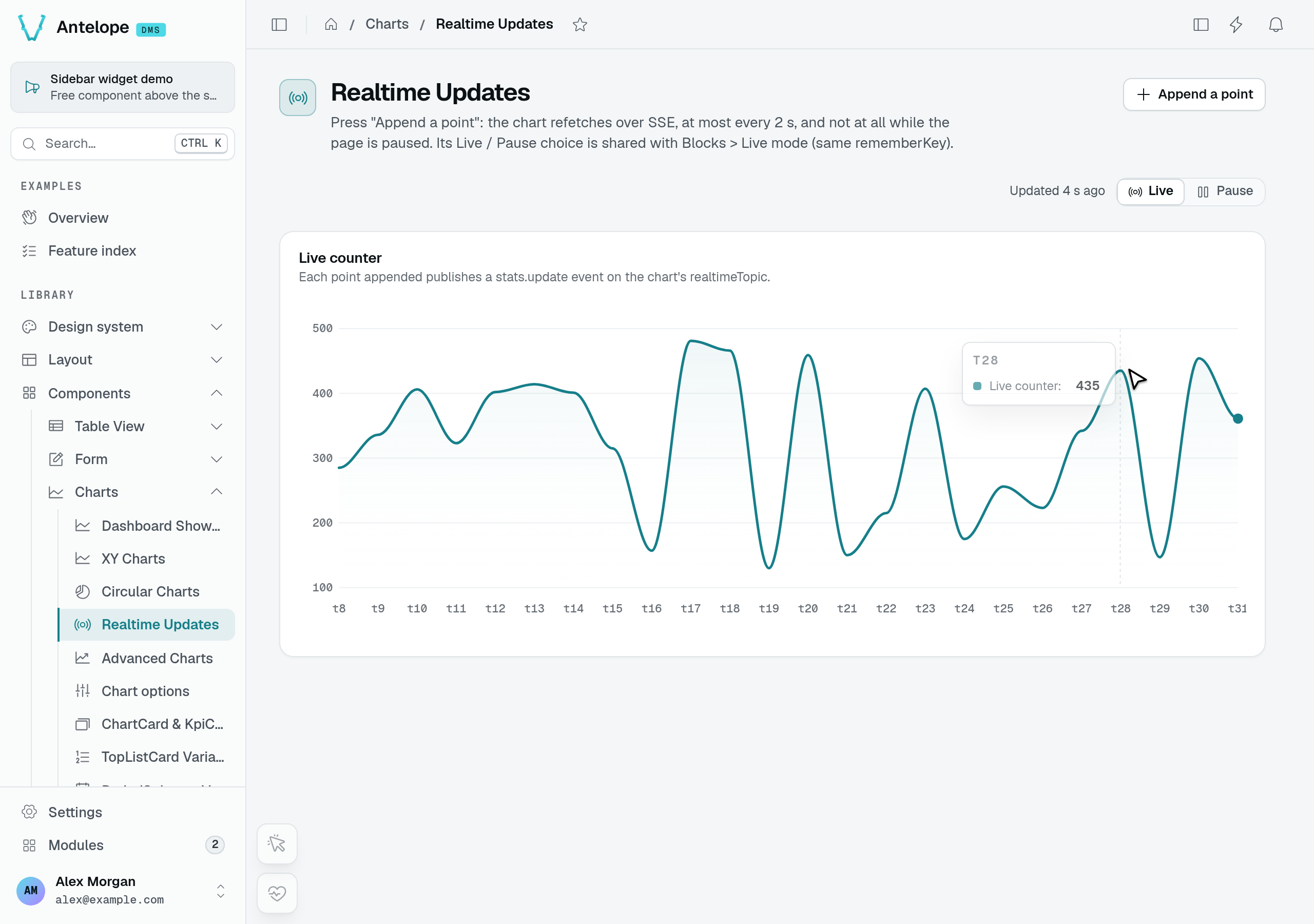

Select Pause in the first tab and append another point in the second. The first chart stays at t30, makes no new data request, and displays 1 new. Selecting Live catches up to t31.

The contract

const cleanup = registerPeriodScope(id, state); // producer side
const scope = usePeriodScope(id); // consumer side → ComputedRef<PeriodState | null>
const url = appendPeriodToUrl(baseUrl, scope.value); // fold state into a request
const preset = usePeriodScopePreset(id); // a badge naming the period → ComputedRef<PeriodState["preset"] | null>

• registerPeriodScope(id, state) registers a ComputedRef<PeriodState> under id and returns a cleanup — call it in onBeforeUnmount. Registering the same id from several producers is safe: the entry lives until the last one unregisters. A producer of your own (a month picker) computes its bounds in the reader's calendar, with readerClock() (wall(date) and instant(wall)), as usePeriod does: a server render then resolves them in the browser's zone, as the browser will.
• usePeriodScope(id) returns the producer's current state, or null when id is falsy or no producer is registered. The lookup is reactive, so a consumer rendered before its producer updates automatically once the selector registers. A lookup that stays unmatched logs a one-shot console warning (after 250 ms, once per id) telling you to add a PeriodSelector with that id.
• usePeriodScopePreset(id) returns the producer's preset alone (this-month, last-24h), or null as usePeriodScope does: what a badge naming the period shows, like TopListCard's. A preset is the same name in every time zone and at every instant, so the server prints it whenever the selector set up before the caller, also where it leaves the bounds to the browser (below), and the browser hydrates it.
• appendPeriodToUrl(url, state) serializes the state onto a URL as query params: always preset and comparison, from / to (ISO dates) when the range has bounds — every period (all) has none, so a route reads their absence as no time filter — plus compareFrom / compareTo when a compare range is set. With a missing url or state it returns url unchanged.

PeriodState

The resolved, serializable value that flows from producer to consumer:

Consumers watch key rather than the object, so a refetch fires once per real change and not on every re-render.

Presets & comparisons

preset and comparison are closed unions — there is no runtime "register a preset" hook; the DMS resolves each literal's range internally. Calendar presets use day boundaries (start-of-day to end-of-day) and day-count presets include today; the two relative presets are the exception and keep instant bounds, so an ops dashboard can look at the last hour rather than the last calendar day. While a relative preset is active its published state re-resolves every minute, so the window actually slides and bound widgets refetch; a calendar preset re-resolves at each local midnight, so a dashboard left open overnight moves on to the new day (today becomes the new day, last-7-days drops its oldest day). custom and all never move on their own.

A calendar period compares to the one before it in the calendar: September (last-month) to August, not to the 30 days before; the third quarter to the second. A period still under way — this-month runs to the end of the month, this-quarter to the end of the quarter — is compared on what has elapsed of it: on October 18, this-month with previous-period compares October 1–31 to September 1–18, and with previous-year to October 1–18 of last year, so a month just started does not read as a fall against a whole one. The range itself still covers the whole month, for a chart's axis; the days to come hold no data.

The defaults are this-month and none. The relative presets, today, yesterday, last-90-days, all and the two custom literals are valid states but only offered when you pass them in presets / comparisons — the default menu stays the business-reporting set.

Wiring a selector to widgets

At the page-builder level you never touch the registry — you set two matching strings. Give the PeriodSelector an id, and give each widget the same value as its periodScope:

import { PeriodSelector } from "@antelopejs/interface-dms/base/period-selector";
import { ChartCard } from "@antelopejs/interface-dms/base/chart-card";
import { KpiCard } from "@antelopejs/interface-dms/base/kpi-card";
import { ChartArea } from "@antelopejs/interface-dms/base/chart";

// Producer: publishes a PeriodState under "sales"
PeriodSelector({ id: "sales", defaultPreset: "this-month" });

// Consumers: read the same scope and refetch on change
KpiCard({ title: "Revenue", fetchUrl: "/dashboard/revenue", periodScope: "sales" });
ChartCard({
  title: "Sales",
  fetchUrl: "/dashboard/sales",
  periodScope: "sales",
  chart: ChartArea({ smooth: true }),
});

Under the hood each widget reads its fetchUrl through useApiData, with the range and comparison params appended, and reads again when the period changes (debounced — the first read runs immediately). While a periodScope is set but unresolved nothing is requested: a typo'd id leaves the widget empty, plus the console warning, until a selector with that id mounts.

A widget shows the comparison the selector applies. A KpiCard prints the value compared against (previousValue) next to its change and names the comparison ("vs previous year") unless its compareLabel or description says otherwise; a ChartCard names its comparison series after it. With No comparison selected, or a period with nothing to compare against (all), the request carries no compareFrom / compareTo, and the KPI cards, chart cards and top lists hide their change, the value compared against and the comparison label, whatever the route answers.

Use multiple distinct ids on one page to drive disjoint widget groups independently; reuse one id to move a group together. A widget with no periodScope ignores the registry entirely and fetches its raw fetchUrl.

A TableView.fromSource table takes a periodScope too: its route and its tab counters are sent the same parameters, the table lists again when the period changes, and its rows and its tab counters keep their skeleton until the scope registers — on the server too, under the rules of the note above, so the server render and the browser's hydration agree.

The period in the page URL

Every PeriodSelector keeps its period in the page URL. There is no option: a dashboard link, a bookmark or a reload always opens the period it was showing. The keys are prefixed with the selector's id, like a table view's (?requests.tab=), so several selectors on one page never read each other's:

A bound is an ISO date (2026-10-01, the whole local day: its start for from, its end for to) or an ISO date-time (2026-10-01T08:00:00Z, that instant). A range picked in the calendar is written as bare dates.

On load the selector takes its period from, in order:

1. The URL — its own keys only.
2. The user's last choice on that selector of that page — or, with rememberKey, on any selector carrying the same key, so a module's pages share one period — kept in the browser (in the dms-preferences cookie, so the server reads it too; only the 20 most recent selectors are kept).
3. defaultPreset / defaultComparison.

The range and the comparison are resolved apart: ?sales.period=ytd alone takes the comparison from the next source. A value the selector cannot honour — an unknown preset, one missing from its presets / comparisons, a malformed date, a range ending before it starts, custom without its dates — is skipped silently for the next source. One exception: a URL naming from / to opens on that range even when custom is not offered — a link framing an incident's window, say. No preset is selected then, and the range is not remembered as the user's choice.

The selector resolves its period during setup, on the server as well, so the server-rendered page already shows the URL's period. Once mounted it writes that period into the URL, so a copied URL always carries it, the default included. A change writes the URL in place: the history entry is replaced rather than pushed, so Back leaves the page instead of walking through every pick, and the page is not requested again — only the bound widgets refetch. The route's query (useDmsRoute().query) follows each write at once, before Inertia's page catches up, so a tab, a quick action or a module component building a query from the route afterwards keeps the new period; there is no need to read window.location. A navigation that changes the selector's keys (Back to the page with another period, a link) moves the period with it.

Carrying the period on a link

A link from one page to another keeps the period when the target page's selector has the same id. A declared link — a page header button, a TopListItem.to, a page row action — names the keys with {{query.X}} tokens, a pair the page has no value for being left out: "/sales/region?id=eu&sales.period={{query.sales.period}}&sales.compare={{query.sales.compare}}&sales.from={{query.sales.from}}&sales.to={{query.sales.to}}". A module component builds it with withPeriodQuery(link, route.query, id), which adds what the page holds under the selector's six keys (periodQueryKeys(id)), the link's own keys winning:

const route = useDmsRoute();
const reportLink = computed(() =>
  withPeriodQuery(`/modules/shop/report?id=${id}`, route.query, "sales"),
);
// "/modules/shop/report?id=42&sales.period=last-7-days&sales.compare=none"

Public layer API

Everything on this page is part of the layer's public surface, auto-imported in any frontend layer — your module's components included. No import statement, no deep path:

That is what lets a module own a period scope without a PeriodSelector anywhere on the page — see the section below. The URL keys and the remembered choice belong to the stock PeriodSelector: a control built on usePeriod keeps its period wherever it wants.

usePeriod

When the stock PeriodSelector UI doesn't fit, build your own control on usePeriod — the reactive state machine behind it. It owns the preset/comparison/custom refs and derives the resolved state you publish.

usePeriod(options?) returns:

options accepts defaultPreset, defaultComparison, presets, and comparisons (the last two narrow the offered menus).

To act as a producer, register state and clean up on unmount — exactly what PeriodSelector does:

<script setup lang="ts">
import { onBeforeUnmount } from "vue";

const props = defineProps<{ id: string }>();
const period = usePeriod({ defaultPreset: "this-quarter" });

// Publish under the scope id, and release it on unmount.
const cleanup = registerPeriodScope(props.id, period.state);
onBeforeUnmount(cleanup);
</script>

<template>
  <button @click="period.setPreset('last-month')">Last month</button>
  <button @click="period.setComparison('previous-year')">vs last year</button>
</template>

Any widget pointing its periodScope at props.id now follows your control just as it would the stock selector.

A module control is free to bypass presets entirely and publish arbitrary ranges through setCustomRange — a billing-month picker with its own labels, for instance:

<script setup lang="ts">
const props = defineProps<{ scopeId: string }>();

const period = usePeriod();
const cleanup = registerPeriodScope(props.scopeId, period.state);
onBeforeUnmount(cleanup);

function selectMonth(range: PeriodRange) {
  period.setCustomRange(range);
  period.setComparison("previous-period");
}
</script>

Mount it with CustomComponent("BillingMonthPicker").options({ scopeId: "billing" }) and give the surrounding KpiCards periodScope: "billing"; they pick up the range and their comparison deltas through the same registry as any other scope. The playground's PeriodSelector Variants page runs exactly this setup.
