Installation

Two sides to install: the DMS project that hosts the module (backend + admin pages), and each visitor-facing site to be tracked (one <script> tag). A third section covers running the module's own development playground.

1. Install in the DMS project

Requirements

• An AntelopeJS project running the DMS (@antelopejs/dms >=0.9.0 <1.0.0, with @antelopejs/interface-dms >=0.7.2 <1.0.0: its useApiData reads the module's pages on the server) on @antelopejs/core

  =1.13.5, with its usual companions: @antelopejs/mongodb ^1.4.3 (the adapter used to verify conditional declaration writes and atomic import claims), @antelopejs/api >=1.3.4 (earlier releases answer a malformed JSON body with a 500), @antelopejs/auth-jwt.

• The DMS console built with @antelopejs/dms-frontend >=0.6.0 <0.7.0 — the range the frontend module declares in its engines.
• MongoDB — analytics data lives in the project's existing database deployment, in the DMS dms-core / dms-tenant schemas.

Declare the module

Add the module with the AntelopeJS CLI:

ajs project modules add @antelopejs/dms-marketing

The entry lands in the project's antelope.config.ts; every option is described in Configuration:

export default defineConfig({
  modules: {
    "dms-marketing": {
      source: {
        type: "package",
        package: "@antelopejs/dms-marketing",
        version: "^0.6.0",
      },
      config: {
        // Optional: absolute path of a MaxMind country database (.mmdb).
        // Enables the visitor-country dimension: the collect IP is resolved
        // locally at ingestion and only the country code is stored. The
        // module ships no GeoIP data — supplying the file (GeoLite2 under
        // its EULA, or a commercial db) is the operator's licensing and
        // compliance decision. Replacing the file takes a restart.
        geoipDatabasePath: "/var/lib/geoip/GeoLite2-Country.mmdb",
      },
    },
    // … dms, mongodb, api, auth-jwt as in any DMS project
  },
});

Behind a reverse proxy

The module identifies a visitor and rate-limits a source by the client address the DMS resolves (getClientIp): X-Forwarded-For is only read behind the reverse proxies the DMS trusts, its auth.trustedProxies option (e.g. 1 behind one nginx, 2 behind a CDN and a load balancer). Left at its default 0 behind a proxy, every visitor looks like the proxy; never set it higher than the proxies actually there, as the entries past them are written by the client.

Upgrading from 0.3. The module's own trustedProxyHops option is gone: move its value to the DMS's auth.trustedProxies, which now covers both. An IPv4-mapped address (::ffff:198.51.100.7, a backend listening on IPv6) is now read as plain IPv4, so the visitors reaching it that way get a new visitor hash once, as on the monthly salt rotation: they count as new visitors and may draw another arm of a running A/B test.

Allow the tracked sites' origins (CORS)

The built-in tracker does not need a CORS grant for the visitor site: it sends beacons as text/plain without a preflight and loads assignments as a script. Register the visitor site's host in the website's domain or extraDomains; that is the ingestion check that rejects a foreign host.

Authenticated console requests still use the @antelopejs/api CORS settings. When the console and API have different origins, allow the console's origin:

api: {
  config: {
    cors: {
      allowedOrigins: ["https://dms.example.com"],
    },
  },
},

Admin frontend

The admin pages are declared backend-side as trees of DMS blocks; the components the module renders itself ship as a DMS frontend module inside the package (frontend-vue/), a Vue 3 project whose root dms.frontend.ts declares the DmsMarketing component prefix and registers them under it. The module declares that frontend module through AddFrontendModule, and the DMS frontend loader (@antelopejs/dms-frontend, CLI ajs dms) materializes it into the generated Inertia workspace: ajs dms prepare against a running backend, ajs dms dev to serve the console. Nothing has to be installed alongside this package — the backend serves the module as an archive. Once up, the module appears in the sidebar as Marketing, its pages under three headings: Analytics (Overview, Acquisition, Pages & heatmaps), Conversion (Funnels & A/B tests) and Setup (Websites, Settings). The funnel report, the funnel builder and the install guide are hidden pages, reached from the others. The headings do not appear in the URLs: every page lives at /modules/marketing/<page>. The analytics pages render on the server: the context bar reads the websites first, so the blocks arrive with the page and its period, and a URL naming no website is redirected to the saved one. The page preview's frames and the funnel builder still draw in the browser.

2. Install on the visitor site

Register the site first, from the install guide or the Websites page (Websites): its id is what the tag embeds.

One tag, before </body> or in <head>. The install guide gives it in three forms — plain HTML, a Nuxt app.head entry and a Google Tag Manager custom HTML tag — and Copy instructions for a developer copies it with a short note for whoever edits the site:

<script defer src="https://<dashboard>/api/marketing/tracker.js"
        data-website-id="<website id>"></script>

The snippet points at the dashboard's origin. Its frontend server (@antelopejs/dms-frontend 0.6) forwards only the backend routes declared to it, and refuses a state-changing request from another origin unless the route is public: the module declares its three scripts (tracker.js, experiments.js, snapshot.js) and its two beacons (collect, snapshot) as publicEndpoints, which pass without a session. A tag pointing at the backend's own origin works too.

Optional attributes:

The tag stays live: page code that changes its data-website-id sends what follows to that website, and removing the attribute pauses collection until one is set again. To measure the DMS dashboard itself, no tag is needed: see Tracking the dashboard itself.

Do not load it with type="module" — that defeats document.currentScript, and the script cannot find its own attributes.

The tracker is cookieless, batches events, flushes with sendBeacon, and tracks SPA navigations through history.pushState/popstate. What it records and the JavaScript API it installs (window.dmsMarketing.track(…)) are covered in Tracker & custom events. On sites that enable page snapshots, mark the elements that must never be captured with data-dms-marketing-mask (text masked) or data-dms-marketing-block (replaced by an empty box) — see Pages & heatmaps.

Verify

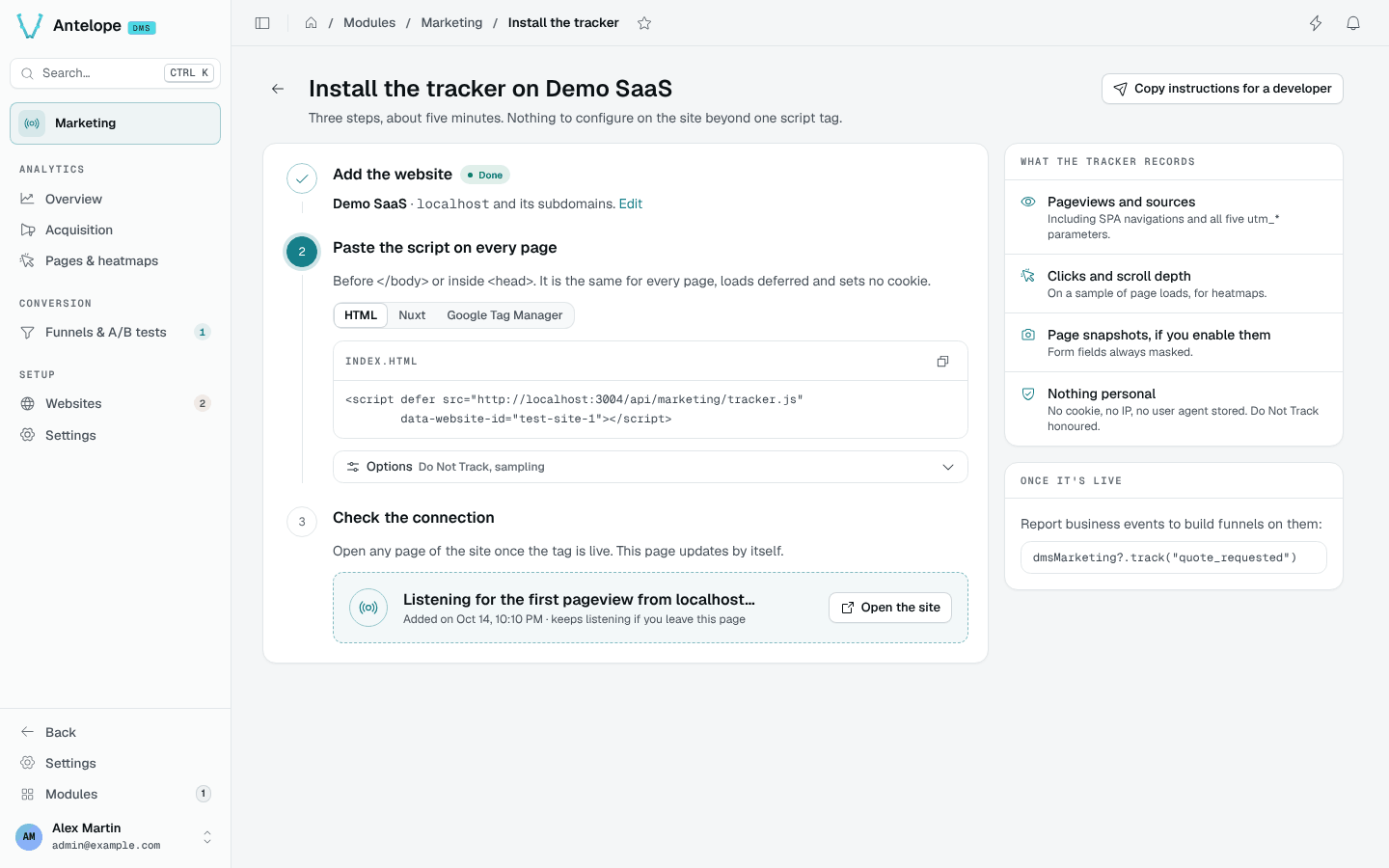

The screenshot shows a local playground, not a verified production connection. Use the snippet generated for your own website and public dashboard origin.

Step 3 of the install guide checks the connection by itself: it polls GET /api/marketing/websites/:id/connection every 4 seconds and turns green once a pageview stored since the site's creation arrives, with its date and time, the host it came from (when this backend instance saw it), its path, browser and device. Check again waits for a pageview sent after the click (?since=<epoch ms>), to re-verify a site already live. A banner says when collection is paused for the whole module or for the site. A beacon refused because its host is not declared shows instead as N events refused from <host>, with Allow this host, which adds the host to the website's extraDomains (POST /api/marketing/websites/:id/allow-host). Refusals are counted in memory, per backend instance, for an hour and for at most 5 hosts per site: enough for a page that polls while someone installs the tag, not an audit trail. The Websites page shows the same refused hosts on the site's card, whatever its state.

By hand:

1. Load the site with the browser's network tab open: the tracker script must load from the backend, then POST /api/marketing/collect must answer 200 (a 403 means the page's host is not among the website's domain/extraDomains, a 404 that the website id is unknown or the site's Collect data switch is off). While collection is paused in Settings, the script is a no-op stub and the collect answer reports every event as dropped.
2. Within a minute, the page appears on /modules/marketing/pages, the overview counts the visit and the context bar reads Live · last event … for the site.

3. Development playground

The repository ships a full consumer project under packages/dms-marketing/playground/: backend on :5010, DMS console via ajs dms dev, and a demo site under http://localhost:5010/demo — a small tracked multi-page site (pricing, signup, SPA navigation, custom events, a prefilled form and masked elements) that exercises every capture path with data-heatmap-sample="1" so nothing is left to sampling. Its pages refuse framing (X-Frame-Options: DENY), as production sites do, so the heatmap backdrop is exercised the way real sites exercise it: through page snapshots, enabled on the seeded website.

pnpm install --filter @antelopejs/dms-marketing...   # workspace root
pnpm build                       # interface, then tsc → dist/
cd packages/dms-marketing/playground
pnpm install --ignore-workspace  # its own lockfile, not the workspace
pnpm dev                         # backend on :5010 (ajs project run -w)
pnpm frontend:dev                # DMS console (ajs dms dev)

The playground expects a local MongoDB on mongodb://localhost:27017 (database playground-dms-marketing), overridable through the MONGO_URL environment variable (MONGO_URL=mongodb://127.0.0.1:27117 pnpm dev), and declares CORS for the dev console on port 3001 (plus DMS_CLIENT_BASE_URL when set). It loads the DMS, its storage and mail companions and this module.

The demo site's website row is seeded by the playground itself at first start (playground/src/seed.ts in that project), since the demo pages embed a fixed data-website-id. Once, at first start, the playground also seeds a demo dataset (playground/src/demo-data.ts) so every page has something to show: three websites of the default tenant — a busy shop, a quieter docs site and one still waiting for its first pageview — with 120 days of daily rollups, 30 days of raw events behind funnels, an A/B test and a heatmap, and a page snapshot to draw it on. Start with DMS_MARKETING_DEMO=0 to skip it. Funnels over the demo site's own journey are ordinary definitions to create from the console: /demo → /demo/pricing → /demo/signup → custom signup_submitted.

Lint with pnpm lint: oxlint and oxfmt over the backend, then eslint over frontend-vue/ (pnpm --dir packages/dms-marketing/frontend-vue install first — the frontend module has a lockfile of its own). pnpm typecheck runs tsc over both packages and pnpm knip reports unused dependencies; CI gates on all three. pnpm test runs the backend suite and the frontend module's vitest suite.
